OEM And ODM ,One-Stop Service ,Zero Defects Is Our Goal.
7 Years
| Ask Lasest Price | |
| Brand Name : | UKD |
| Model Number : | D200*150 |
| Certification : | ISO 9001 |
| Price : | dollar 1-2 per piece |
| Payment Terms : | L/C, D/A, T/T |
| Supply Ability : | 50000 pieces per year |
| Delivery Time : | 2-3 weeks |
UKD CNC Machine Parts Wood Work Machining Principle Axis Cylinder Frame
The Cylinder Frame
| Boundary Dimension | length | Diameter | / |
| 150 | 200 | / | |
| Weight | 2.2 | ||
| Raw material | bar | ||
| Process desciption | plasma cutting +CNC workcenter +package+shipment | ||
| Surface | Brown anodizing or customized | ||
| Usage | industry ,railway | ||
| Protection | Bubble anti-collision bag +carton +wooden cage | ||
| related industry | machine industry , equipments | ||
| Delivery | 2-3weeks | ||

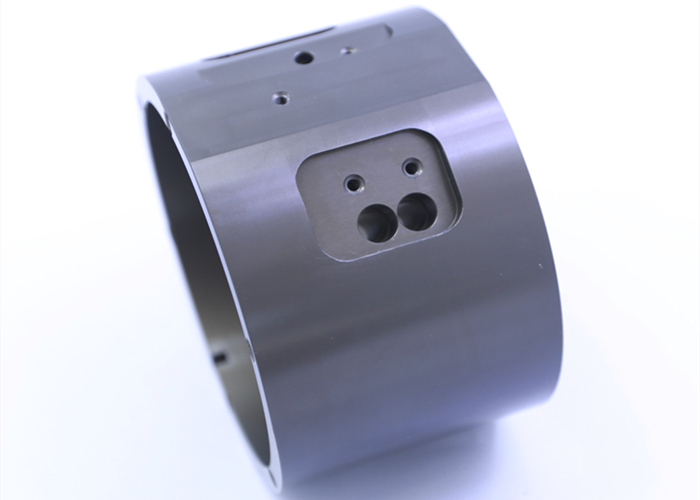

The real photos
The part advantage
1. It was cut by Nakamura turning and milling composite machine.GD&T tolerance could make sure +-0.02.
2. High speed running make the surface Roughness Ra2.0.
3. Fixing only one time, finish all surface cutting. CPK1.67 could make sure.
4. So for the complicated cylinder, our machine is better.
Mutiple Materials Available:
Materials Available | Stainless Steel | SS201, SS303, SS304, SS316 etc. |
| Steel | Q235, 20#, 45# AISI1050,AISI4140 etc. | |
Brass | C36000 ( C26800), C37700 ( HPb59), C38500( HPb58), C27200(CuZn37) , C28000(CuZn40) | |
| Iron: | 1213, 12L14,1215 etc. | |
| Bronze | C51000, C52100, C54400, etc. | |
| Aluminum | Al6061, Al6063,AL7075,AL5052 etc | |
| plastic | nylon, PE , POM etc |
other products
NaKaMura Turning and milling composite machine
other relative equipment
FAQ
1. Q: what is the processing for the quote ?
A: We can quote from your 3d formats like IGS,STP,PARASOLID etc and
2D drawings as well; quote the
price to clients after got the 2d or 3d drawings within 2 hours;
2. Q: How is the next ?
A: We will send the cost to you and get your confirmations for the
quote;
3. Q: what is the software will you use for the proceeding ?
A: We make the 3D programm with Pro-Engineer, UGS, SOLIDWORKS,
MasterCam, Catia etc ;
4. Q: what is the type of machines for manufacturing ?
A: Manufactured from CNC Machining, Laser cutting , stamping
,injection as well as the parts files different ;
5. Q: Do you do the surface treatments please ?
A:yes, sure . we do the surface treatments ,for instance ;
chromated, powder coating, Anodizing, laser
etching as well as painting ;
6. Q: What is the quality Control before shipping?
A: We have QC department for the quality control before shipping;
why choose us?
1. We have more than 20 years experience for production
2. We have an extensive expertise in CNC machining, offer "One-stop
Service".
3. Now we have more than 50 sets of various processing equipment.
There are more than 20 people in
professional technology R&D team.
4. All of our operations are strictly compliant with IATF16949
guidelines.
5. we could save more cost for you. High quality Low Price
|
|
